Patco 1800 - Flame Retardant Galley Tape (1800FR)
  • Price:
  • $189.25
  • & FREE Shipping

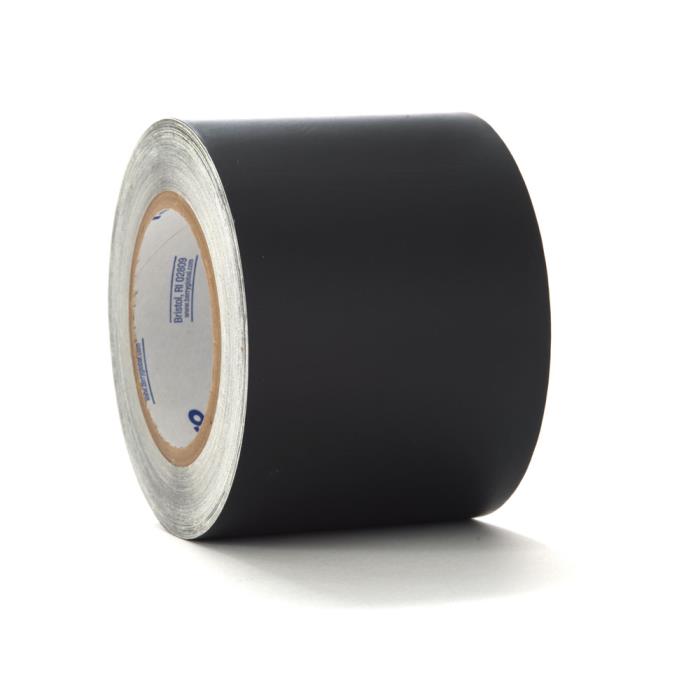

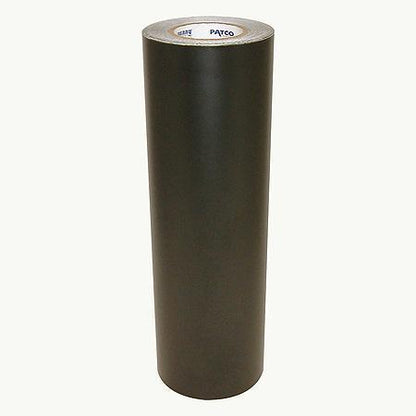

Patco 1800 Flame Retardant Galley Tape

1800FR

Is an aircraft corrosion inhibitor tape designed for water seal aerospace applications in main cabin wet areas (galleys, lavatories, & entryways). Features of Patco 1800FR include: tough, conformable and moisture resistant; permanent and flame retardant; allows wide width usage; helps prevent corrosion on floor structures; will not delaminate; meets FAR requirements; compatible with most sealants; fast application; and can be die-cut to various shapes.



Documentation Provided:  Factory C of C and Burn Test Certificate to FAR 25.853a

Patco 1800 Black, Flame Retardant, Linered PVC (Vinyl) Tape (aka “Black Mylar” and/or “Galley Tape”); Meets:

  • FAR 25.853(a) Appendix F for Interior Aircraft Use;
  • Fokker FK-05-159 & FK05-160
  • Bombardier 91-25-1; 91-25-2; 9125-3; 91-25-4;
  • 91-25-5; 9-25-6



Technical Information

Patco 1800 Flame Retardant Galley Tape

  • Adhesive: acrylic
  • Carrier/Backing: Polyvinyl Chloride (PVC) film
  • Release Liner: 53# coated Kraft paper
  • Thickness: 9.5 mils (carrier, adhesive) 8.5 mils (carrier)
  • Adhesion: 50 ounces per inch (to stainless steel test panel)
  • Tensile Strength: 25 pounds per inch (longitudinal)
  • Application Temperature: 50°F to 120°F
  • Service/Operating Temperature: -40°F to 200°F
  • Elongation: 200%
  • Puncture Resistance: 12 pounds
  • Abrasion/Wear Index: 34
  • Certifications: FAR 25.853(a) Appendix F for Interior Aircraft Use; Fokker FK05-159 & FK05-160; Bombardier 91-25-1, 91-25-2, 91-25-3, 91-25-4, 91-25-5, 9-2
  • Core: 3" diameter plastic

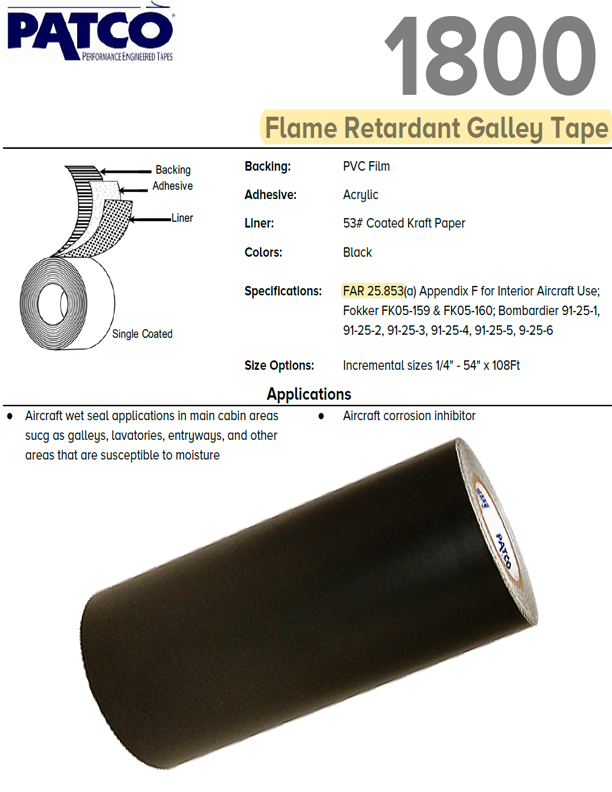

Patco 1800FR Tech Data Sheet
