PROTEX 10V - Paper Protection (Mask-Off)
  • Price:
  • $160.00
  • & FREE Shipping

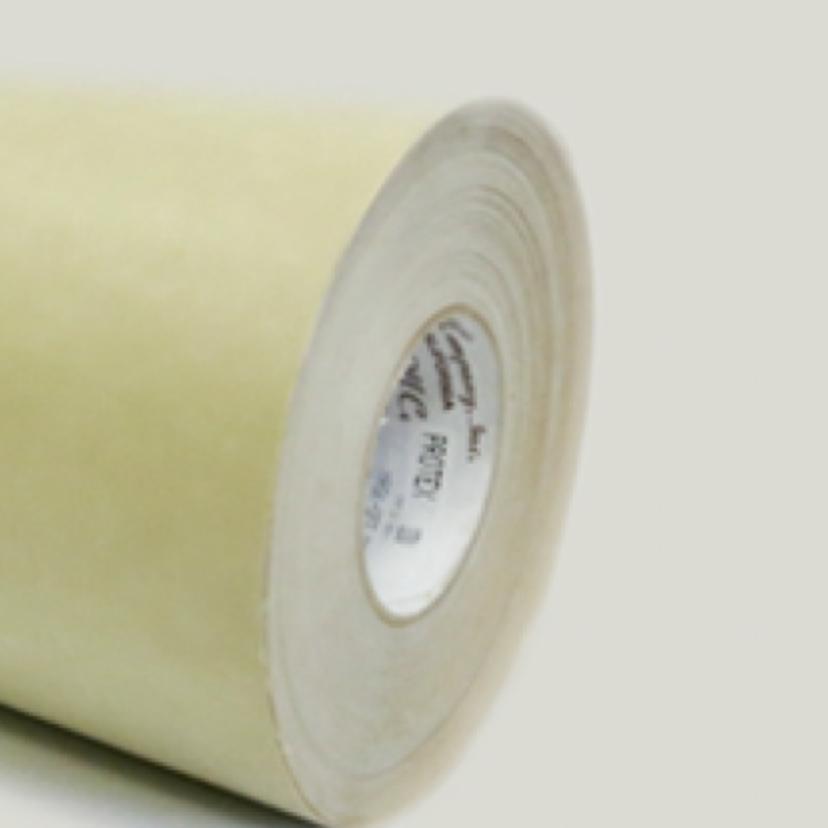

PROTEX 10V

Single-sided Paper with Natural Latex Adhesive

PROTEX 10v Protective Paper is a 10 mil latex saturated paper, which has a vinyl coating on one side to increase its abrasion resistance. It can be used in the protection of acrylic and polycarbonate windows, canopies and windshields. It can also be used for bare metal and painted surface protection where added abrasion resistance is required. A liner allows the product to be die-cut if desired.

This product is not intended for fly-away applications.



Stocked Sizes:

  • 12" x 60 Yards
  • 16" x 60 Yards
  • 24" x 60 Yards



Protex 10V "Elephant Hide/Bull Hide" Linered, Latex Saturated and Vinyl Coated Kraft Surface Protection Tape; 60 yards standard roll length

  • Documentation:  Manufacturer’s C of C
  • Manufacturer’s Shelf Life:  Twelve (12) months from DOM

Specifications

Boeing BAC 5034, Type IV, Class I, Grade A, NSN 7510-01-121-8267

Applications

INDUSTRIES: Aerospace

APPLICATION: Surface Protection

APPLICATION DESCRIPTION:

Aircraft window protection where light transmission is not required. Acrylic and polycarbonate windows, canopies and windshields. Also used on bare metal and painted surfaces where added resistance to abrasion is required

APPLICATION NOTES:

Application surface: Metals, Plastics, Glass, Painted Surfaces, Pre-Mask

Technical Data

Mask-Off Protex10V


MATERIAL DESCRIPTION:

ADHESIVE TYPE: Pressure-Sensitive
CONSTRUCTION: Single Coated
LINER: Flat

TECHNICAL DATA:

ADHESIVE LAYER: Rubber
ADHESIVE LAYER DESCRIPTION: Natural Latex Rubber
BACKING/CARRIER MATERIAL: Paper
ADHESION TO STEEL: oz/inch width 30-40 (-5/+7) (At time of manufacture) PSTC-1 (Modified)
TENSILE STRENGTH: lbs/inch, M.D. 35-45 min
ELONGATION: % M.D. 3.0 min
TEMPERATURE OPERATING: 150° for 1 hour, No heat



Protex 10v Tech Data Sheet
