PROTEX 5 - Printed Paper Protection (Mask-Off)
  • Price:
  • $125.00
  • & FREE Shipping


PROTEX 5

Single-sided Printed Paper with Natural Latex Adhesive

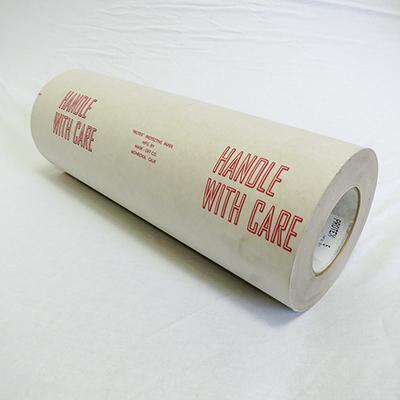

PROTEX 5 Protective Paper is a 4-5 mil latex saturated paper used for protection of bare aluminum, titanium, stainless steel and painted surfaces. Paper is printed in red “SCRATCHES CAUSE REJECTIONS-HANDLE WITH CARE.” The main uses for PROTEX 5 are on exterior aluminum skins in the aircraft industry, as well as electronic cabinetry, to prevent scratches during fabrication. After being applied to the surface it can be routed, drilled, countersunk and riveted. A liner allows the product to be die-cut if desired.

This product is not intended for fly-away applications.



Stocked Sizes:

  • 12" x 60 Yards
  • 16" x 60 Yards
  • 24" x 60 Yards



Specifications

Boeing BAC 5034, Type IV, Class I, Grade A, NSN 8135-00-946-2090

Applications

INDUSTRIES: Aerospace

APPLICATION: Surface Protection

APPLICATION DESCRIPTION:

Used on various surfaces to include exterior aluminum skins in the aerospace industry. After applications, tape can be routed, drilled, countersunk and riveted. Used on bare metal, titanium, stainless steel and painted surfaces. Liner allows the product to be die-cut if desired.

APPLICATION NOTES:

Application surface: Metals, Plastics, Glass, Painted Surfaces

Technical Data

Mask-Off Protex

MATERIAL DESCRIPTION:

ADHESIVE TYPE: Pressure-Sensitive
CONSTRUCTION: Single Coated
LINER: Flat

TECHNICAL DATA:

ADHESIVE LAYER: Rubber
ADHESIVE LAYER DESCRIPTION: 5 mil Natural Latex
BACKING/CARRIER MATERIAL: Paper
ADHESION TO STEEL: oz/inch width 17-22 (-3/+4) (At time of manufacture) PSTC-1 (Modified)
TENSILE STRENGTH: lbs/inch M.D. 12.7 min
ELONGATION: % M.D. 6.0 min
TEMPERATURE OPERATING: 150° for 1 hour, No heat



Protex 5 Tech Data Sheet
