BMS5-146 - Polyken 296FR Cargo-Pit Seam Tape – TapeMonster

Polyken

BMS5-146 - Polyken 296FR Cargo-Pit Seam Tape
  • Price:
  • $41.50
  • & FREE Shipping

  • * Cargo pit applications for freight carrying aircraft.
  • * Challenging applications where high adhesion and flame resistance is critical.

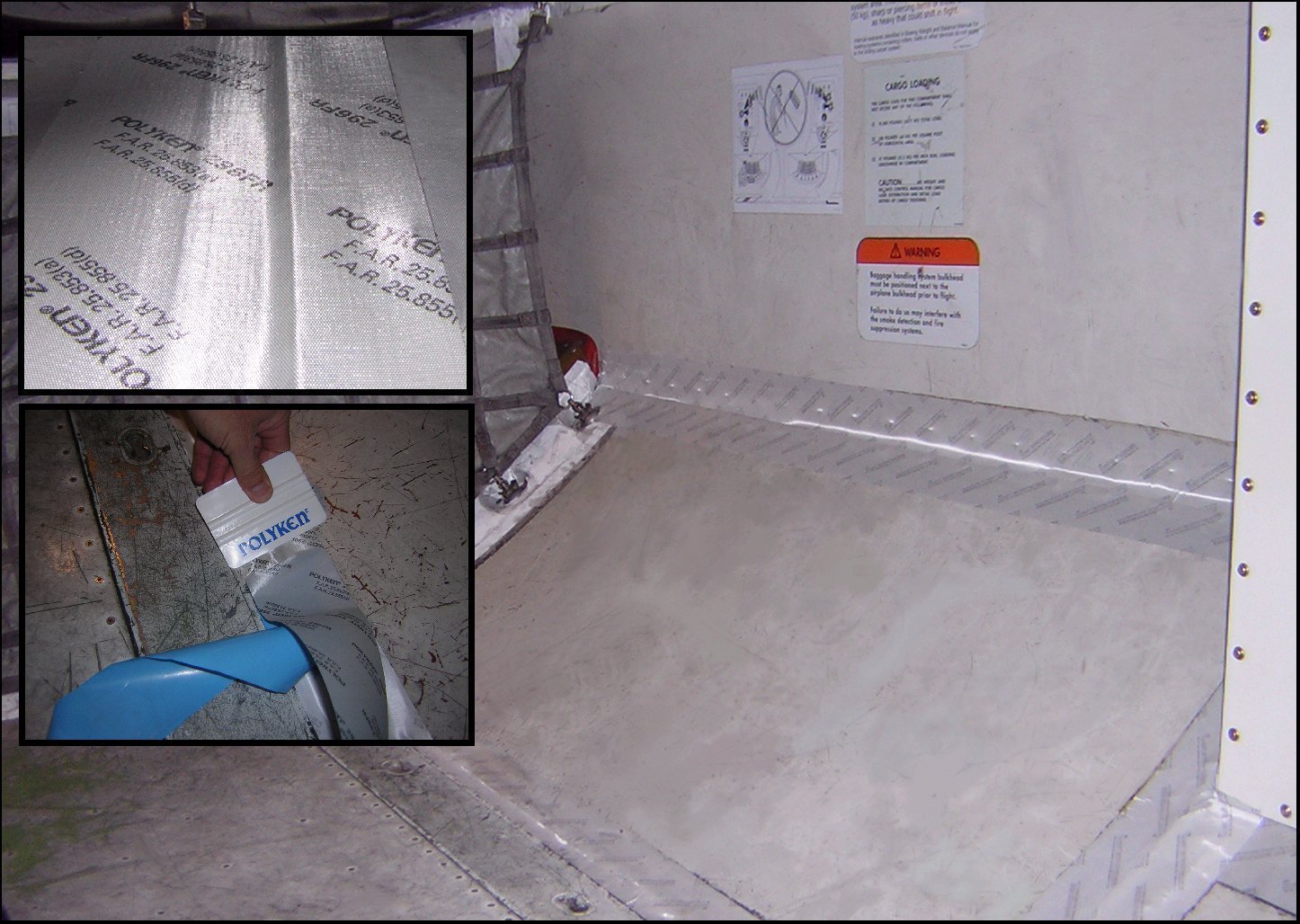

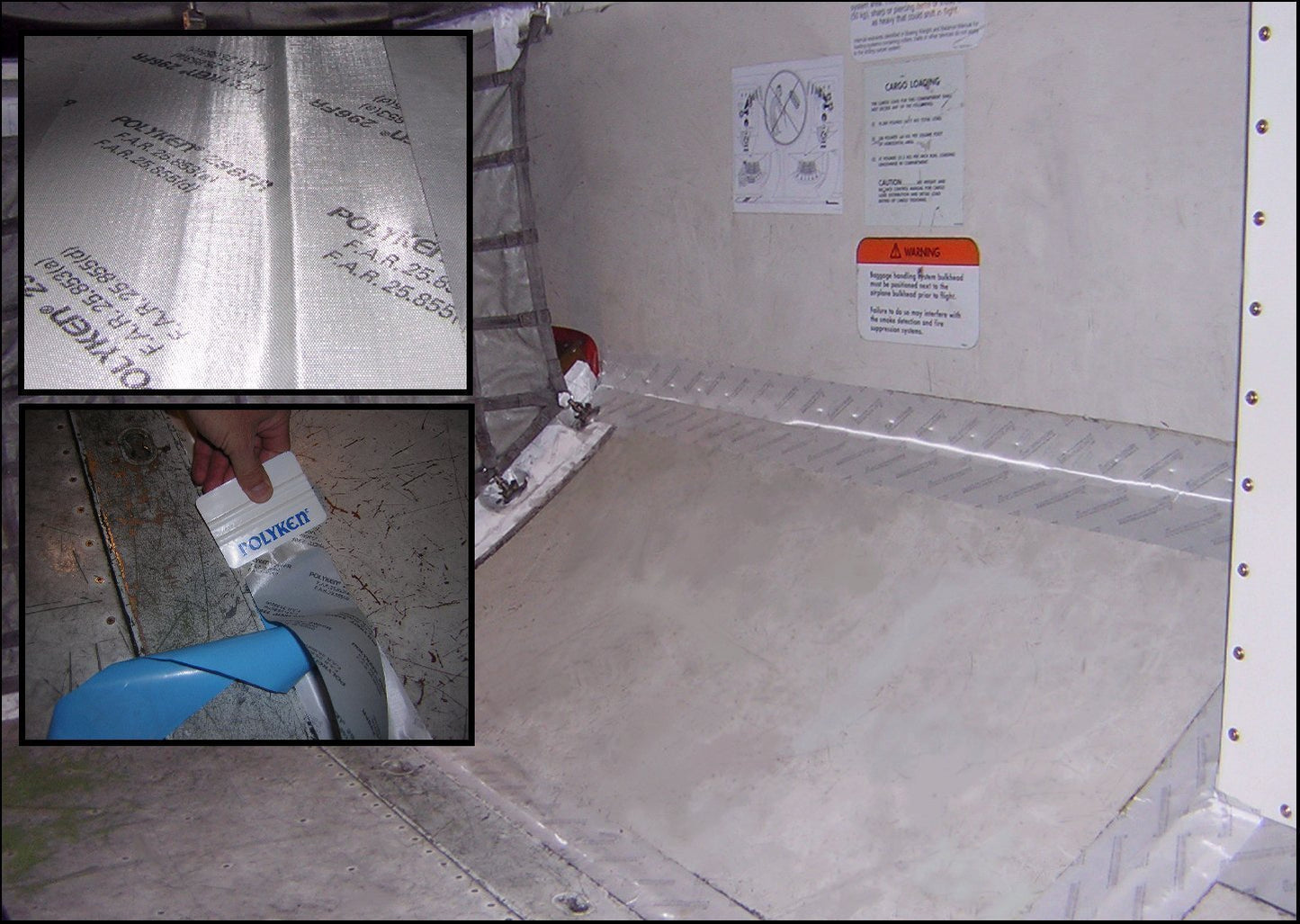

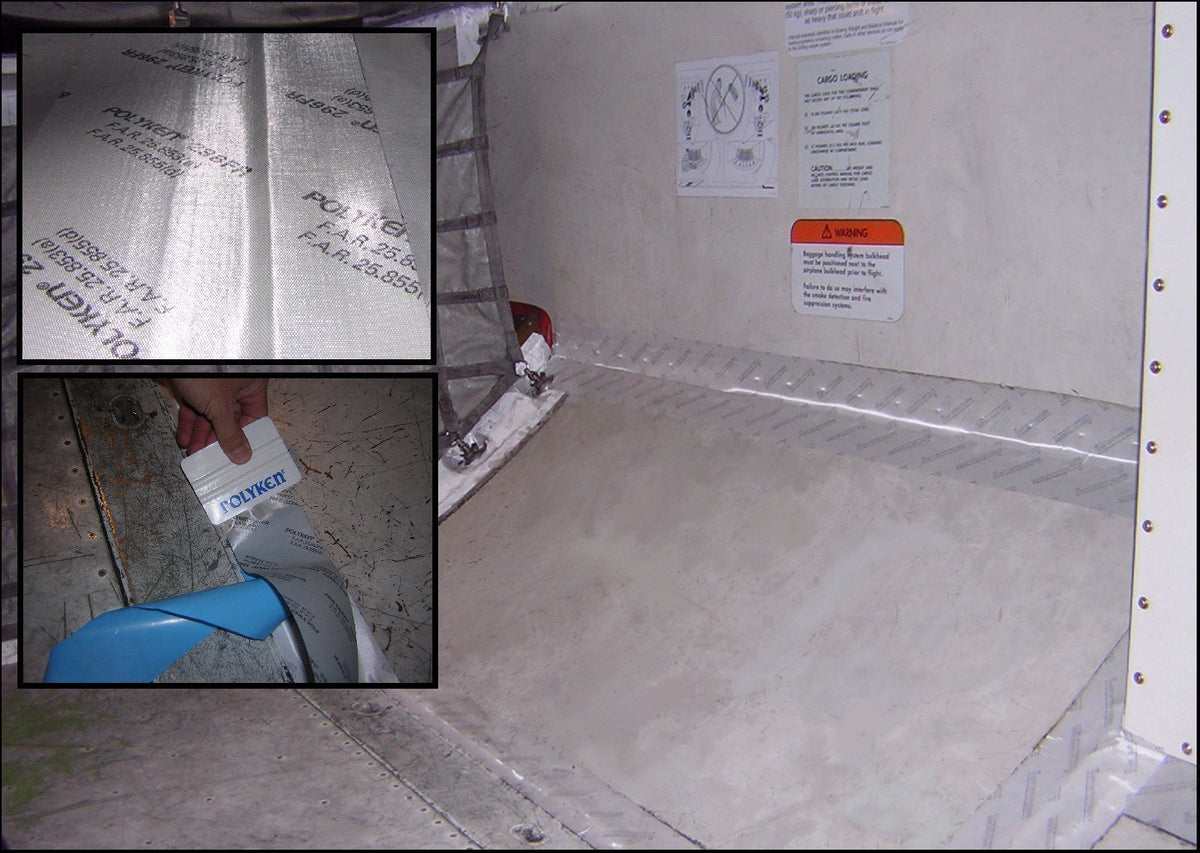

  • * Seaming and repairing cargo compartment liners.
  • * Covering pins & rivets.
  • * Metal surface protection during soldering or welding.


PayPal Logo



Flame Retardant Cargo Compartment Tape

BMS5-146

Factory C of C to BMS5-146 and Burn Test Certs to FAR 25.853a and FAR 25.855d Provided



A lightweight, flame retardant fiberglass cloth tape used for a multitude of aerospace uses. Designed to meet requirements for use in aircraft cargo compartments.

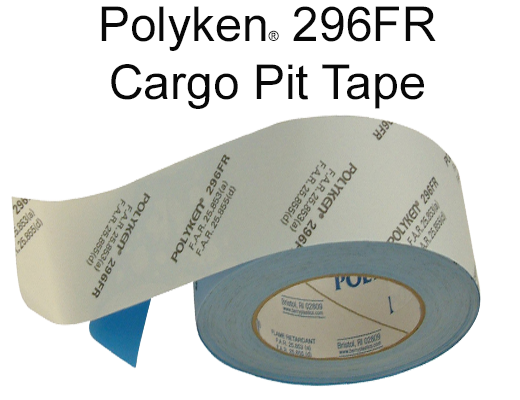

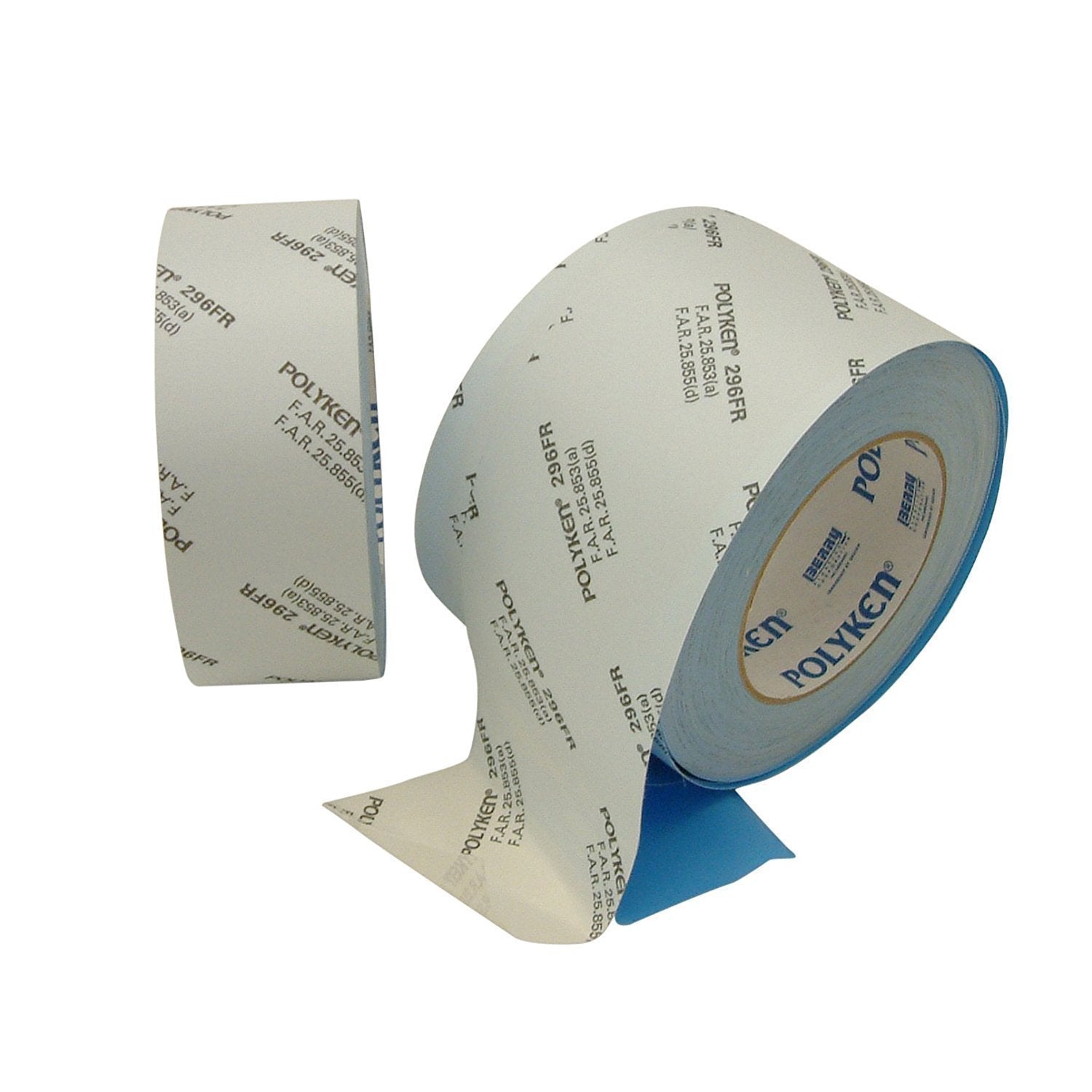

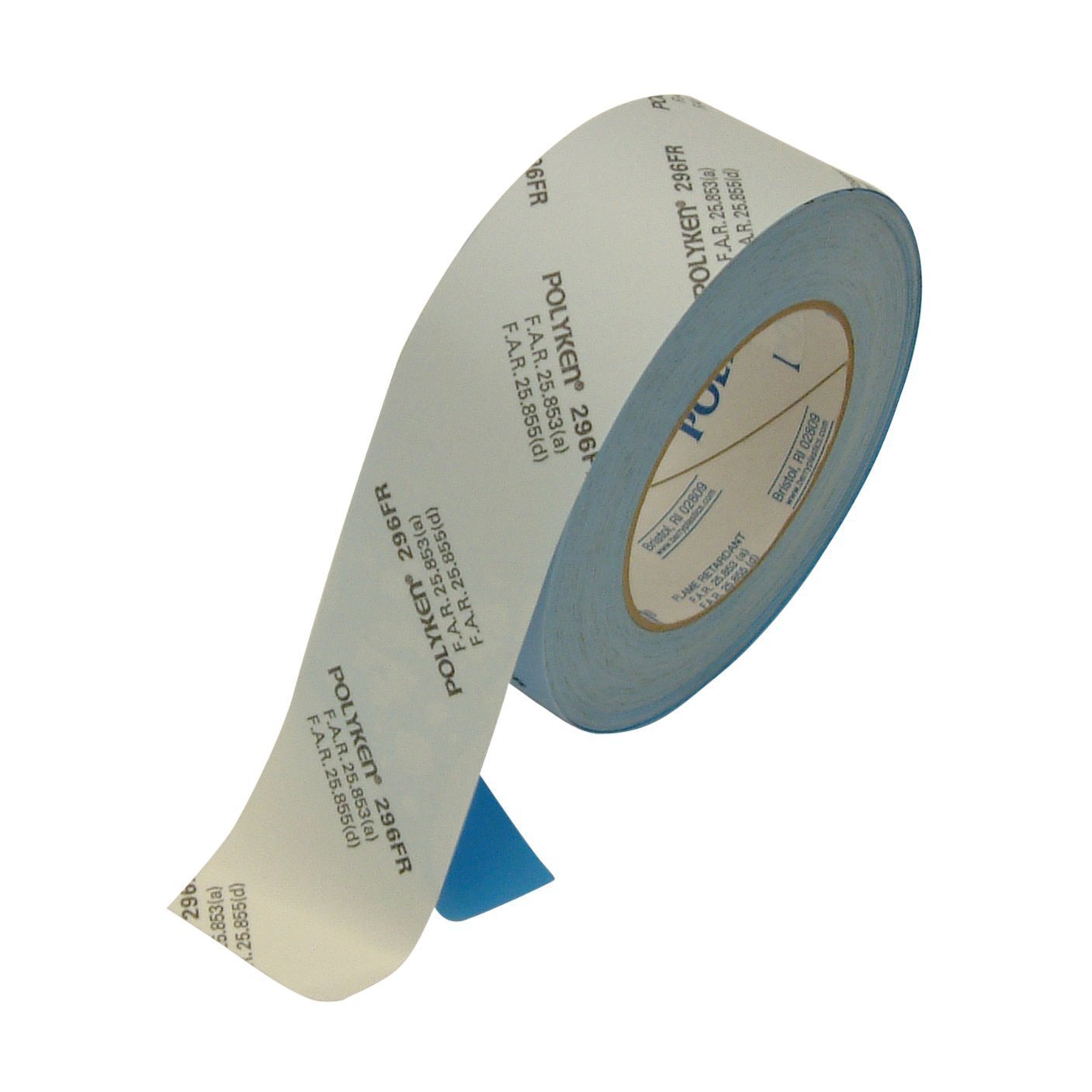

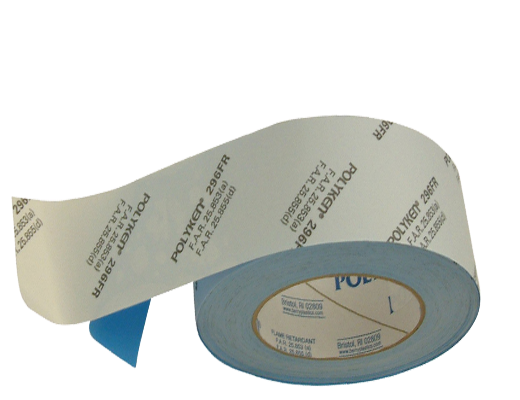

Polyken 296FR Flame Retardant, Linered, Printed, Glass Cloth Cargo Pit Tape; Meets:

  • * FAR 25.853(a) & 25.855(d),
  • * BMS5-146 Rev. ORG, Type 1, Class 1, Grade A,
  • * Airbus ABD0031, Para 7.3.2;
  • * Boeing 737-SL-25-115-B, 757-SL-25-085-B, 747-SL-25-195-B, 767-SL-25-112-B, 777-SL-25-037-B


2" rolls / 24 per case

3" rolls / 16 per case

In Stock:

  • * 2 inch x 36 yards
  • * 3 inch x 36 yards
  • * 4 inch x 36 yards

Features & Benefits Technical Information
  • Complies with FAR 25.853(a) & 25.855(d).
  • Super high tensile strength.
  • Resists flame penetration for added safety.
  • Lightweight construction so saves money.
  • Conformable to handle curves and corners.
  • Repositionable and clean removal.
  • Resists flagging and lifting.
  • Meets EU Directive 76/769/EEC.




  • Adhesive: bromide-free acrylic
  • Carrier/Backing: fiberglass cloth
  • Release Liner: low-density polyethylene (LDPE) film
  • Thickness: 7 mils (carrier, adhesive)
  • Adhesion: 45 ounces per inch (to stainless steel test panel)
  • Tensile Strength: 134 pounds per inch (longitudinal)
  • Service/Operating Temperature: -40°F to 275°F
  • Exiting Time: 0.66 seconds
  • Burn Length: 3 inches
  • After Glow: 0 seconds
  • Certifications: FAR 25.853(a) & 25.855(d), BMS5-146, Airbus ABD0031, Para 7.3.2& 7.4, Boeing 737-SL-25-115-B, 757-SL-25-085-B, 747-SL-25-195-B, 767-SL-25-112-B, 777-SL-25-037-B
  • Core: 3" diameter
Note: Specifications are those given by manufacturers and are not tested for accuracy.
