Shurtape EV 57 General Purpose, Flame Retardant, Vinyl Electrical Tape – TapeMonster

Shurtape

Shurtape EV 57 General Purpose, Flame Retardant, Vinyl Electrical Tape
  • Price:
  • $2.00
  • + Act Now To Recieve FREE Shipping Promo!
Black
White
Orange
3/4 in. x 66ft
Roll
10 Pack
Case 100 Rolls

Shopping for other colors of electrical tape? Click Here


  • 7.0 mil, general purpose grade electrical tape
  • Hand-tearable and can be used for color-coding
  • Highly conformable and insulating
  • Indoor/outdoor applications
  • Lead free
  • Flame retardant
  • Resistant to UV, oils, acids, alkalies, corrosive chemicals and water
  • PVC backing
  • CSA Approved and UL Listed
  • For primary insulation of electrical splices up to 600 V









PayPal Logo

Shurtape EV 57 General Purpose Vinyl Electrical Tape

EV 57 BLK General Purpose Grade, UL Listed, Black Electrical Tape. General purpose grade, 7.0 mil vinyl insulation tape for use in a variety of mechanical and electrical applications. UL Listed and CSA Approved, EV 57B is a highly conformable, lead free and flame retardant black electrical tape for use indoors and out.
  • 7.0 mil, general purpose grade electrical tape
  • Hand-tearable and can be used for color-coding
  • Highly conformable and insulating
  • Indoor/outdoor applications
  • CSA Approved and UL Listed



TYPICAL APPLICATIONS
• For primary insulation of electrical splices up to 600 V
• Can be used when wrapping wire harnesses and cables
• For indoor and outdoor use

PRODUCT FEATURES
• Highly conformable
• Hand-tearable
• Lead free
• Flame retardant
• Resistant to UV, oils, acids, alkalies, corrosive chemicals and water
• Also available in a variety of colors

CONSTRUCTION
Overall Grade/Function: General Purpose
Backing: Polyvinylchloride (PVC)
Adhesive: Non-corrosive, rubber-based
STANDARD WIDTH(S)
¾ in 19 mm
STANDARD LENGTH(S)
60 ft 18.2 m 66 ft 20 m

STORAGE AND USAGE CONDITIONS
Tape should be stored in its original packaging in a cool, dry area away
from direct sunlight and should be used within 12 months of date
of shipment. Surfaces to which tape is applied should be clean, dry
and free of grease, oil or other contaminants.

Applicable Standards

UL Listed, CSA 22.2

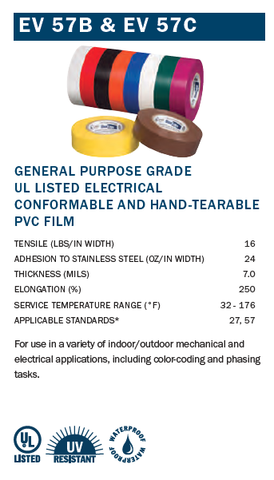

PHYSICAL PROPERTIES STANDARD METRIC
Tensile Strength 16 lbs/in width 28 N/10 mm
Adhesion to Stainless Steel 24 oz/in width 2.63 N/10 mm
Thickness 7.0 mils 0.18 mm
Elongation 250% 250%
Dielectric Strength 1,300 V/mil 1,300 V/mil
Dielectric Breakdown 9,100 V 9,100 V
Service Temperature Range 32 F to 176 F 0 C to 80 C
