tesa® 51970 Permanent Bonding Double Coated Tape
  • Price:
  • $27.65
  • + Act Now To Receive FREE Shipping Promo!
1 in. x 55yds
2 in. x 55yds
1 in. x 55yds (Case = 12 Rolls)
2 in. x 55yds (Case = 6 Rolls)

Double Sided Film Tape.

Transparent Double Sided Filmic Tape.

Excellent Combination Of High Tack & Adhesion

Secure Bonding Even On Rough Surfaces

Good Temperature Resistance & Outdoor Suitability

Mounting & Bonding In The Appliance Industry

Mounting Of Plastic & Wooden Trims

Mounting Of Decorative Materials & Displays

Mounting Of Transparent Signs & Scales


Rolls Per Case

1" = 12 Rolls / Case

2" = 6 Rolls Per Case

PayPal Logo

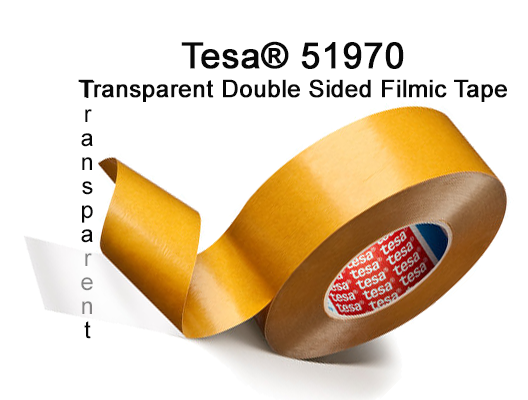

Tesa® 51970

Transparent Double-Sided Filmic Tape

Permanent Bonding Double Coated Tape

The Tesa 51970 is a transparent Double Sided Mounting Tape consisting of a PP-film backing and a tackified adhesive. It features excellent combination of high tack and adhesion, secure bond even on critical materials such as PP an PE rough surfaces, and good temperature resistance and outdoor suitability.



Available Sizes:

  •    1/2 inch x 54.68 yards (12.5mm x 50 meters)
  •    1 inch x 54.68 yards (25mm x 50 meters
  •    2 inch x 54.68 yards (50mm x 50 meters)

tesa® 51970 is suitable for mounting and bonding applications in the appliance industry.

Technical properties

Backing material

PP film

Color transparent
Total thickness

8.66 mils

Type of adhesive

tackified acrylic

Elongation at break


Tensile strength

28.55 lbs/in

Type of liner


Color of liner


Thickness of liner

2.79 mils


Transparent Double Sided Adhesive Tape

Nominal Tape Widths vs Actual Widths

Tape rolls are cut to standard tape industry metric widths of approx. 24mm per 1-inch of nominal width ordered. As a result ACTUAL tape widths are normally 5% narrower than the NOMINAL width shown in inches. Examples:

  • 1" Nominal width = 15/16" (24mm) Actual width
  • 2" Nominal width = 1-7/8" (48mm) Actual width
  • 3" Nominal width = 2-13/16" (72mm) Actual width

Note that tape rolls are NOT guaranteed to be splice-free.
